Transducers

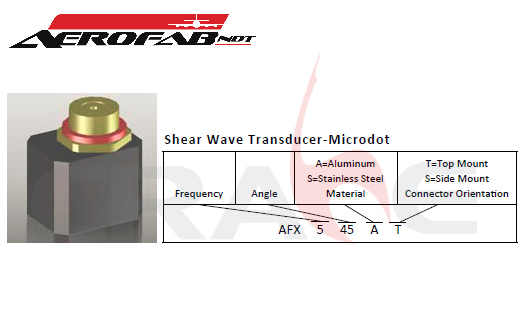

AeroFab/Shear Wave Transducer‐Microdot/飛機無損探傷工具
Full range Shear Wave Transducer designs with an assortment of sizes and frequency’s.
Connector top and side mounted. Materials Aluminum and Stainless Steel. Custom designs
on request.
5 MHz
Material/Size Extra Small Small Medium Large
Aluminum AFX‐545AT AFS‐545AT AFM‐545AT AFL‐545AT
Aluminum AFX‐545AT AFS‐545AT AFM‐545AT AFL‐545AT
Stainless Steel AFX‐545SS AFS‐545SS AFM‐545SS AFL‐545SS
Stainless Steel AFX‐545SS AFS‐545SS AFM‐545SS AFL‐545SS
10 MHz
Material/Size Extra Small Small Medium Large
Aluminum AFX‐1045AT AFS‐1045AT AFM‐1045AT AFL‐1045AT
Aluminum AFX‐1045AS AFS‐1045AS AFM‐1045AS AFL‐1045AS
Stainless Steel AFX‐1045ST AFS‐1045ST AFM‐1045ST AFL‐1045ST
Stainless Steel AFX‐1045SS AFS‐1045SS AFM‐1045SS AFL‐1045SS
Case Size Element Size Angle Freq Freq Freq
Extra Small .187 35 2.25 MHz 5 MHz 10 MHz
Small .187 45 2.25 MHz 5 MHz 10 MHz
Medium .250 60 2.25 MHz 5 MHz 10 MHz
Large .375 70 2.25 MHz 5 MHz 10 MHz
Case Dim Length Height Width
Extra Small .375 .375 .260
Small .550 .450 .260
Medium .750 .500 .370
Large 1.000 .600 .500
